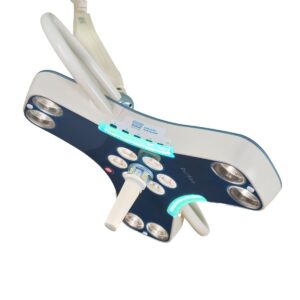

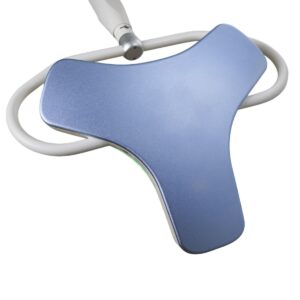

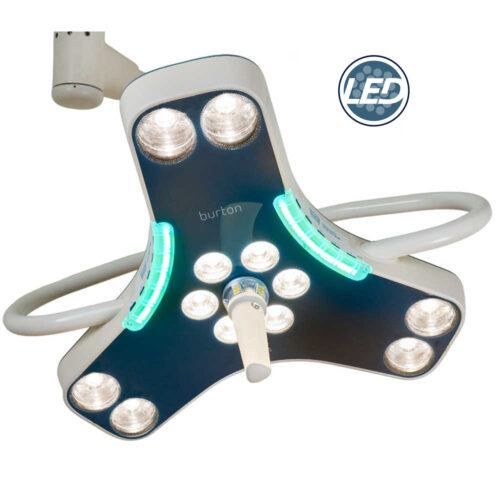

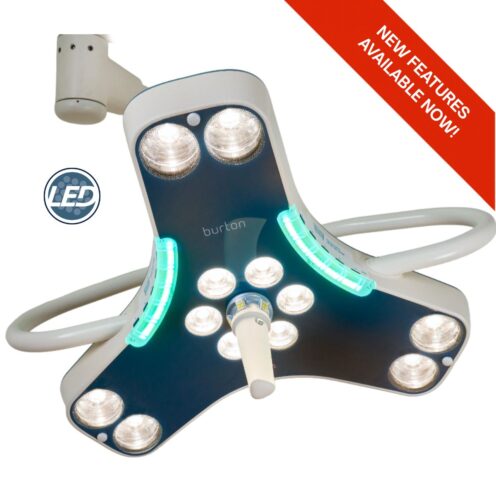

APEX LED
Introducing the all-new APEX LED Surgical Light. Compact, Lightweight surgical light that revolutionized the surgical experience. With the combination of tri-lobe, state-of-the-art LED technology, and light head optics, provides superior shadow reduction. Our balanced arm and minimalistic light weight light head gives you total freedom of movement. Burton’s entire system aids in maintaining position. Reduced surface area versus traditional surgery lights and seamless construction aids in cleaning efficacy.
Features:
- APX130: 130,000 Lux | APX160: 160,000 Lux
- 4100 K Color Temperature
- High CRI (Color Rendering Index) of > 97
- 5 Dimming Levels
- Patent Pending 29/939.225
Down Tube Lengths:
- Short Down Tube: 12 in/300 mm (Preferred Ceiling Height of 8.5 ft)
- Long Down Tube: 20 in/500 mm (Preferred Ceiling Height of 9 ft and 10 ft)
Category: Surgical Lights
Market: Hospital, Ambulatory, Dermatology & Plastic Surgery, Oral Health, Animal Health
Product Specifications
| APEX LED | |
|---|---|
| Illuminance: | AP130: 130,000 Lux AP160: 160,000 Lux |
| Color Temperature | 4100 Kelvin |
| CRI (Color Rendering Index): | > 97 |
| Light Head Diameter | Diameter 22 inches (56 cm), Weight 13 Lbs. (5.9 kg) |
| Depth of Illumination | 47 in (119 cm) |
| Light Field Diameter | 9.5 in (D10) (24 cm) |
| D50 / D10 | > .53 |
| 5 Dimming Levels | AP130: 90,000/100,000/110,000/120,000/130,000 AP160: 100,000/115,000/130,000/140,000/160,000 |
| Number of LEDs | 12 Modules (6 LEDs per Module) |
| LED Service Life | > 50,000 Hours |
| Focusing | Yes |
| Endo Mode | Yes |
| Mounting Options | Single Ceiling, Dual Ceiling, Triple Ceiling |
| Certifications | FDA Registration, ISO 13485 Medical Device Manufacturing, UL/IEC 60601-1, EN/IEC 60601-2-41, CAN/CSA C22.2 No. 6-01 M90, UL, CE Certifications |
| IP Rating | IP42 |
| Product Warranty | 5 Years Limited Warranty |
Ordering Information
| Model | Down Tube (Short: 12 in/300mm or Long: 20 in/500mm) | Arm Length | Ordering Number |
|---|---|---|---|
| 130,000 Lux, Single Ceiling | Short | 700 mm | AP130A01 |
| 130,000 Lux, Single Ceiling | Short | 850 mm | AP130B01 |
| 130,000 Lux, Single Ceiling | Short | 1000 mm | AP130C01 |
| 160,000 Lux, Single Ceiling | Short | 700 mm | AP160A01 |
| 160,000 Lux, Single Ceiling | Short | 850 mm | AP160B01 |
| 160,000 Lux, Single Ceiling | Short | 1000 mm | AP160C01 |
| 130,000 Lux, Single Ceiling | Long | 700 mm | AP130A02 |
| 130,000 Lux, Single Ceiling | Long | 850 mm | AP130B02 |
| 130,000 Lux, Single Ceiling | Long | 1000 mm | AP130C02 |
| 160,000 Lux, Single Ceiling | Long | 700 mm | AP160A02 |
| 160,000 Lux, Single Ceiling | Long | 850 mm | AP160B02 |
| 160,000 Lux, Single Ceiling | Long | 1000 mm | AP160C02 |

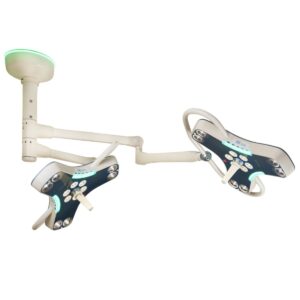

| 130,000 Lux, Dual Ceiling | Short | 700 mm, 850 mm | AP130A03 |
| 130,000 Lux, Dual Ceiling | Short | 850 mm, 1000 mm | AP130B03 |
| 160,000 Lux, Dual Ceiling | Short | 700 mm, 850 mm | AP160A03 |
| 160,000 Lux, Dual Ceiling | Short | 850 mm, 1000 mm | AP160B03 |
| 130,000 Lux, Light Head/Monitor Mount (Double) | Short | 700 mm, 850 mm | AP130A07 |
| 130,000 Lux, Light Head/Monitor Mount (Double) | Short | 850 mm, 1000 mm | AP130B07 |
| 160,000 Lux, Light Head/Monitor Mount (Double) | Short | 700 mm, 850 mm | AP160A07 |
| 160,000 Lux, Light Head/Monitor Mount (Double) | Short | 850 mm, 1000 mm | AP160B07 |
| 130,000 Lux, Light Head/Light Head/ Monitor Mount (Triple) | Short | 700 mm, 850 mm, 1000 mm | AP130A11 |
| 160,000 Lux, Light Head/Light Head/ Monitor Mount (Triple) | Short | 700 mm, 850 mm, 1000 mm | AP160A11 |
| 130,000 Lux, Dual Ceiling | Long | 700 mm, 850 mm | AP130A22 |
| 130,000 Lux, Dual Ceiling | Long | 850 mm, 1000 mm | AP130B22 |
| 130,000 Lux, Dual Ceiling | Long | 700 mm, 850 mm | AP160A22 |
| 130,000 Lux, Dual Ceiling | Long | 850 mm, 1000 mm | AP160B22 |
| 130,000 Lux, Light Head/Monitor Mount (Double) | Long | 700 mm, 850 mm | AP130A26 |
| 130,000 Lux, Light Head/Monitor Mount (Double) | Long | 850 mm, 1000 mm | AP130B26 |
| 160,000 Lux, Light Head/Monitor Mount (Double) | Long | 700 mm, 850 mm | AP160A26 |
| 160,000 Lux, Light Head/Monitor Mount (Double) | Long | 850 mm, 1000 mm | AP160B26 |
| 130,000 Lux, Light Head/Light Head/ Monitor Mount (Triple) | Long | 700 mm, 850 mm, 1000 mm | AP130A30 |
| 160,000 Lux, Light Head/Light Head/ Monitor Mount (Triple) | Long | 700 mm, 850 mm, 1000 mm | AP160A30 |
| Accessories | |
|---|---|
| 5000884 | Ceiling Structure Plate |
| 5000810 | Sterilizable / Autoclavable Handle |
| 5000839 | Disposable Handle Covers. Sterile, 25 per Carton |
