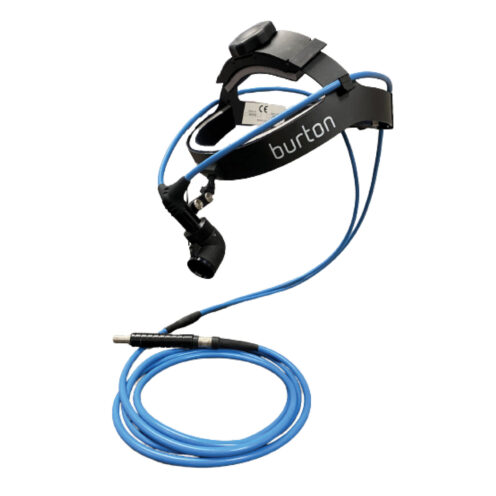

Powered by a 300-watt Xenon source with light delivery via multi-fiber cables, Burton’s XenaLux OR headlamp system offers superior intensity as well as remarkable reliability and value. The headlamp’s optical system has a full range of articulation with a variable spot range, removable joystick adjustment and a new and improved vertically adjustable linkage arm for added reach and greater manoeuvrability. Unique design and optics allow the XenaLux Illuminator to provider superior features.


  • 225,000 lux at 16” (40.64 cm)
  • Color Temperature of 5,900 K
  • CRI (Color Rendering Index) of 98
  • Spot Diameter of 0.8” – 4.3” (20 mm- 110 mm)
  • 3-year Limited Headlamp and Module
  • 3-year Limited Fiber Optic Illuminator
  • 1-year Limited Fiber Optic Cable



Product Specifications

Illuminance:225,000 Lux at 16" (40.64 cm)
Color Temperature:5,900 Kelvin
CRI (Color Rendering Index):98
Light Source:Xenon
Rated Life:500-hour
Power:300 Watts
Illuminator Input Voltage:100-120VAS 50/60 Hz, 220-240VAC 50Hz
Weight:Headlight 6.5 oz (184 g)
Spot Diameter:Variable 0.8" - 4.3" (20 mm - 110 mm)
Product Warranty3- Year Limited Headlamp and Module; 3-year Limited Fiber Optic Illuminator; 1-year Limited Fiber Optic Cable

Ordering Information

XN10CXenaLux Complete Headlight System
XN10HXenaLux Headlight and Cable
XN10IXenaLux 300 Watt Xenon Illuminator
880300Mobile Floor Stand for Illuminator
4000446XenaLux Headlight Non-Sterile Autoclavable Joystick, Set of Five (5)
4000443300 XenaLux Replacement Bulbs
4000447XenaLux Light Source Headlight Replacement Cable
Call BurtonGarment Clip (Quantity 5)
Call BurtonComfort Liner, Front, Back, Top
